Walk Through Metal Detector
EDI-USA’s walk-through metal detector employs a highly sensitive digital & electromagnetic processing technology to detect hidden metal objects on humans.
Our metal detector features six (6) overlapping detection areas, combined with a high brightness LED alarm in order to accurately detect metal objects. Manufactured with lightweight aluminum, the EDI-USA metal detector is easy to setup, use, and transport, and is a reliable resource to detect contraband in an array of environments, including inside buildings, event spaces, and transportation hubs.
Technical Specifications:
- 360º omni-direction detection for four (4) corresponding infrared transmitters and receivers to eliminate dead angle of detection.
- Each area has 255 levels of sensitivity to eliminate object interferences / adjust sensitivity.
- Detects a minimum flow of 50 cm, and includes password protection to prevent users from modifying sensitivity parameters.
- Supports 40 people / minute.
- Complies with EMC electromagnetic radiation standards and meets GB-4793 & NILEJ-0601 standards.
- Power supply: 220V AC, 50 / 60Hz, 35W power consumption.
- Net weight: 51.5kg / set

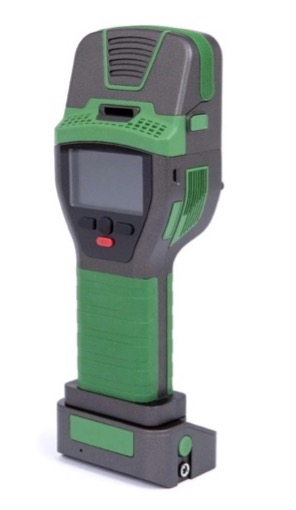

Handheld Scanner Metal Detector
Handheld metal detectors are an important tool to help prevent visitors from bringing weapons or other metal contraband into your workplace, school, or home.
The EDI-USA metal detector allows users to quickly and accurately scan large volumes of people to detect metal contraband. The scanner’s adjustable sensitivity functions with 1-click switching, and indicates by sound alarm (and/or vibration) if metal is detected on the subject. Includes durable leather case to attach to user’s belt.
Technical Specifications:
- Supports up to 40 hours of use.
- Detection sensitivity: detects a metal coin with a distance of >3cm.
- Alarm function by audio, vibration, or both.
- Quiescent current: less than 12mA
- Working current: less than 50mA for sound & light, less than 107mA for vibration.
- Power supply: 9-volt battery (6F22ND battery) with external charger function.
- Net weight: 360g
