Entry Tools

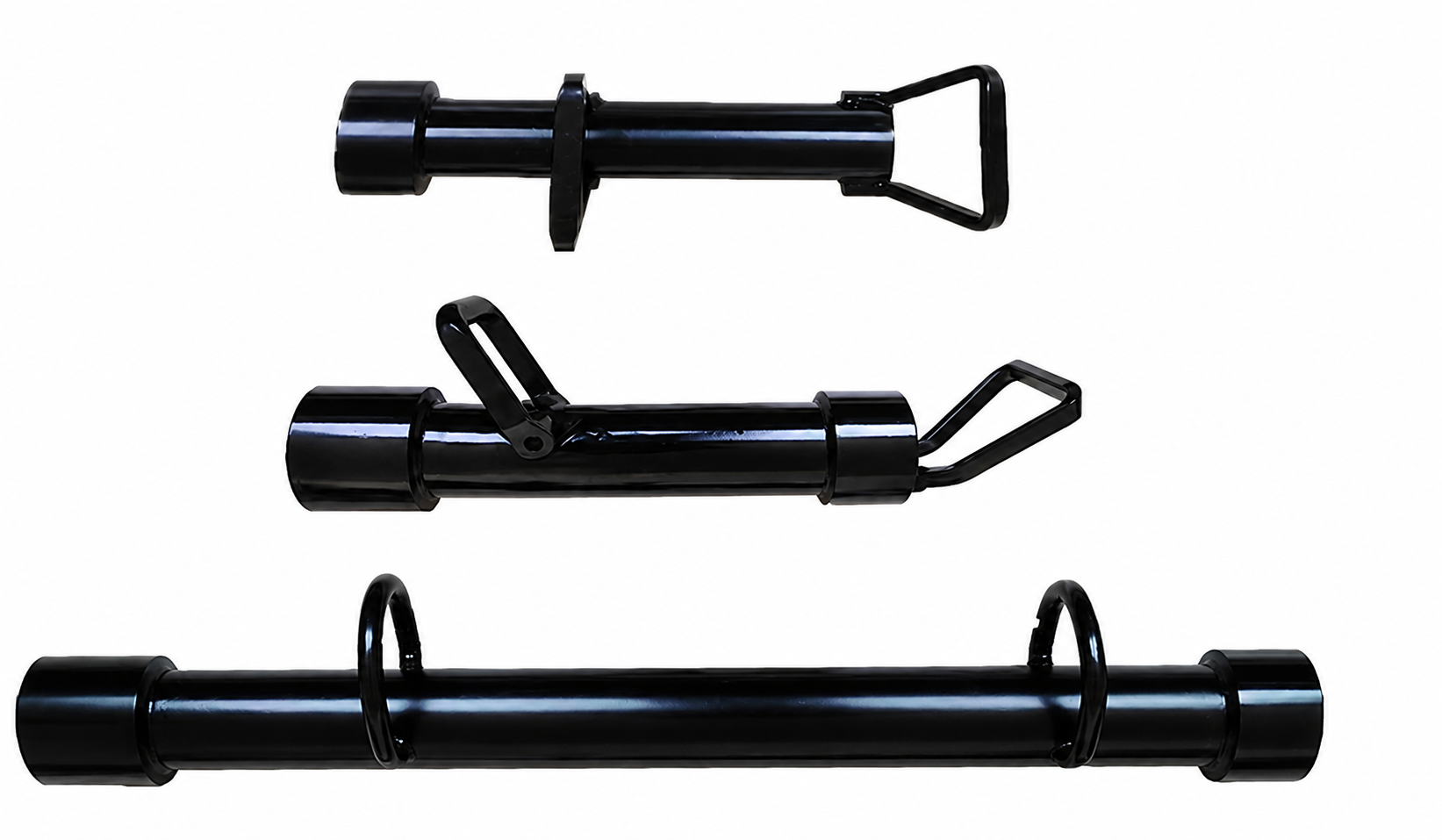

The EDI-USA battering ram series is designed for use by tactical teams to breach doors, walls, windows, and other tactical obstacles.

The battering rams are available in three (3) sizes and are manufactured with strong reinforced steel (jet black color) for maximum impact. The small and medium rams can be used by 1 person, and the large ram requires 2 people for use. Each battering ram includes 2 handles and can be stored easily in storerooms or vehicles.

Available Sizes:

Small:
Length: 21.5”
Weight: 22 lbs

Medium:
Length: 25.5”
Weight: 41 lbs

Large:
Length: 41”
Weight: 53 lbs

A battering ram is an important tool for extraction and operations. Don’t skip out on this important item for your team!

Have more questions about our battering rams? We’ve got you covered! Please contact us and we are happy to help!

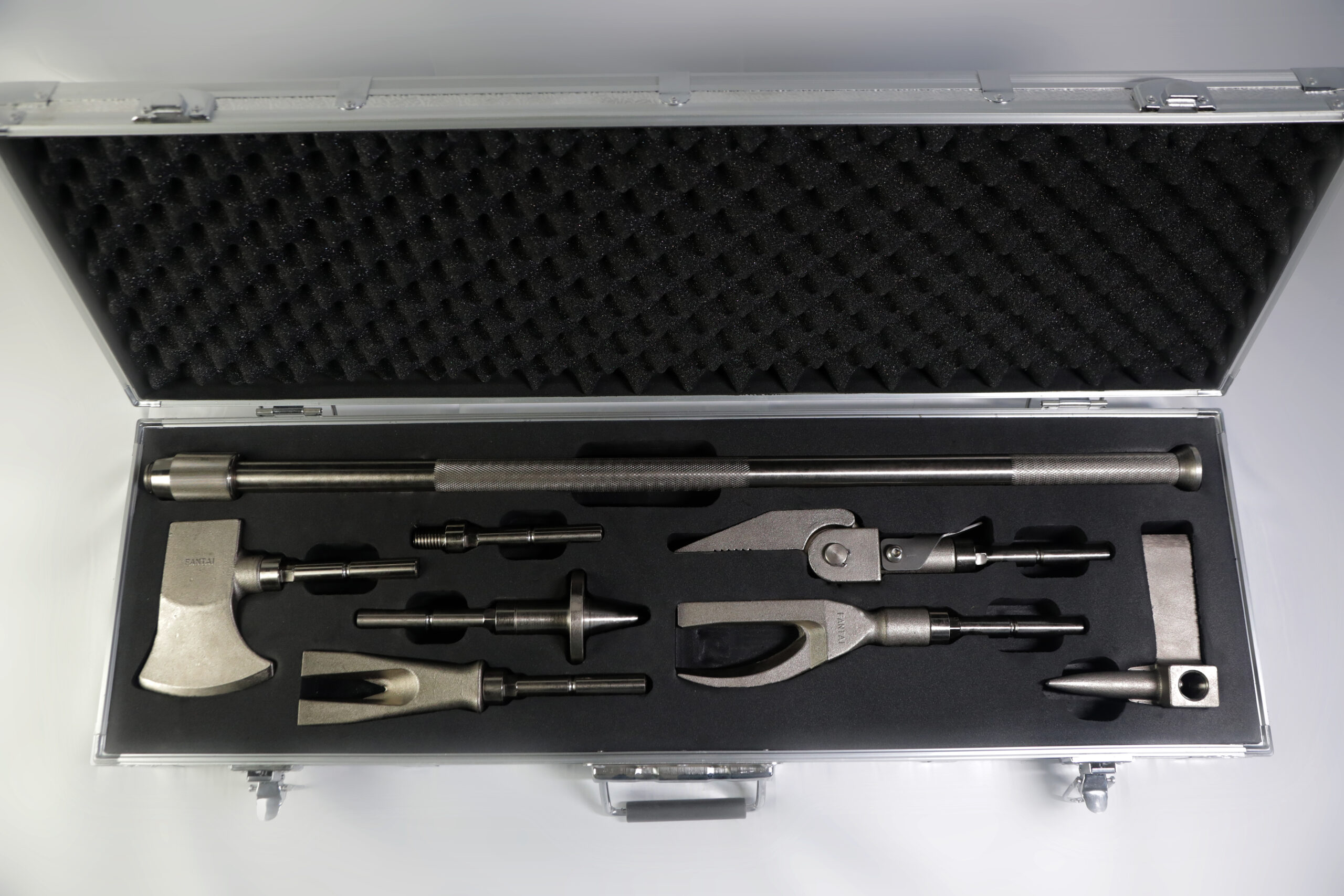

EDI’s handheld demolition tool kit is suitable for breaking and dismantling doors and windows, padlocks, metals, concrete, etc. These tools combine pulling, prying, chopping, twisting, tearing, knocking, chiseling, cutting, smashing, and splitting functions. They do not require external power.

The impact head is made of high-strength tool steel, and tool heads can be quickly interchanged. The user can quickly and effectively break doors, pry locks, chisel through bricks, concrete walls and floors, cut car metal sheets and various composite materials. This kit is suitable for various rescue operations, especially earthquake, car accident and other sites.

Kit includes: Sliding telescopic impact rod, pry lock puller, metal cutter, long wide chisel, short narrow chisel, long pointed chisel, short pointed chisel, V-shaped chisel, aluminum alloy box.

See below for descriptions.

Sliding telescopic impact rod: Can be combined with other components for various breaking and dismantling functions such as impact, beating, cutting, etc. Minimum (closed) length 71.5 cm (28”); maximum open length 113.5 cm (44.7”); impact stroke 42 cm (16.5”); weight 5.30 kg (11.7 lbs).

Lock pry and nail puller: Pries open doors, windows, and padlocks; pulls up steel nails. Length 31 cm (12.2”); weight ~1.2 kg (2.6 lbs).

Metal cutter: Capable of tearing and cutting Q235-equivalent steel plates 1.5 mm thick. Length 31 cm (12.2”); weight ~1.2 kg (2.6 lbs).

Long wide chisel: Impacts and chisels open plastic, wooden doors and windows, etc. Length 38.2 cm (15”), weight ~1.2 kg (2.6 lbs).

Short and narrow chisel: Capable of impacting and chiseling through hard objects, breaking down wooden doors and windows, etc. Length 38.0 cm (~15”); weight ~1.07 kg (~2.4 lbs).

Long pointed chisel: Impacts & chisels open concrete and brick walls; breaks glass; chisels open doors and windows; penetrates metal and many composite materials; can also be positioned for punching. Length 38.0 cm (~15”); weight ~1.04 kg (~2.3 lbs).

Short pointed chisel: Suitable for small spaces; impacts & chisels concrete and brick walls; breaks glass, chisels doors and windows, pierces metal and many composite materials. Can also be positioned for punching. Length 26.5 cm (10.4”); weight ~0.68 kg (~1.5 lbs).

V-shaped chisel: Capable of chiseling and striking. Length 30.8 cm (~15”); weight ~0.9 kg (~2 lbs).

EDI’s  enhanced handheld demolition tool kit is suitable for breaking and dismantling doors and windows, padlocks, metal, concrete, etc. The kit’s functions include pulling, prying, chopping, twisting, tearing, knocking, chiseling, cutting, smashing, and more. The impact heads are made of high-strength tool steel, which can quickly and effectively break doors, pry locks, chisel through bricks, concrete walls and floors, cut automotive metal sheets and various composite materials. No external power required; suitable for various rescue operations, especially earthquakes, car accidents, etc.

Kit includes: Sliding telescopic impact rod, pry lock puller, metal cutter, cross pry head, V-shaped wide chisel, flat chisel, pointed chisel, multifunctional waist axe, wide axe, connecting rod, aluminum alloy portable case.

See below for individual descriptions.

Sliding telescopic impact rod: This telescopic / sliding rod can be combined with other components for various breaking and dismantling functions such as impact, beating, cutting, etc. Maximum length is 113.5 cm (~45”); minimum length is 71.5 cm (~28”). The impact stroke is 42 cm. The impact rod weighs about 5.20 kg (11.5 lbs).

Lock pry and nail puller: Pries open doors, windows, and padlocks; pulls up steel nails. Length 31 cm (12.2”);  weight ~1.20 kg (~2.7 lbs).

Metal cutter: Tears steel plates or iron sheets of ≥2mm thickness (for cars, airplanes, etc.) Suitable for various accident rescue sites. Length 34 cm (13.4”); weight ~1.22 kg (~2.7 lbs).

Cross pry head: Used in combination with connecting rod, it can drill holes in hard objects, break glass, and can be wedged into gaps in doors, windows, and cars to pry them open. Very versatile. Length 12 cm (~4¾”), weight ~0.60 kg (~1.3 lbs).

V-shaped chisel: Impacts and chisels through materials of general hardness. Length 29 cm (11.4”), weight ~0.9 kg (~2 lbs).

Flat chisel: Used in conjunction w/ sliding rod to impact and chisel open hard objects, such as wooden doors and windows. Length 38 cm (15”); weight ~1.07 kg (2.36 lbs).

Pointed chisel: Impacts & chisels open concrete and brick walls; breaks glass, chisels open doors and windows, penetrates metal and numerous composite materials. Can also be positioned and punched. Length 38 cm (~15”); weight ~1.04 kg (2.29 lbs).

Multi-functional waist axe: Combines functions such as chopping, prying, pulling, and dismantling bolts. Designed for rescue personnel. Can be carried at high altitude for rescue operations. Length 28 cm (~11”); weight ~0.77 kg (~1.7 lbs).

Connecting rod: Used for connecting w/ cross-pry tool. Length 20.5 cm (8.1”); weight ~0.58 kg (~1.3 lbs).

Wide axe: Cuts Q235A-equivalent round steel with a diameter greater than 6mm; chops doors and windows; breaks glass and other brittle objects. Length 25.5 cm (10″); weight ~1.90 kg (~4.2 lbs).

Toolbox: Waterproof and shockproof; makes tool storage and transport easy.

Kit includes: Axe lever, lock puller, metal cutter, cross pry head, wide axe, ratchet pry head, glass crusher, connecting rod, aluminum-alloy portable case.

Axe lever: Anti-slip-treated grip handle. Made of high-strength tool steel. Useable as a lever or handle; can be used in combination w/ other tool heads. Length 78.0 cm (27.9”); weight ~1.88 kg (4.1 lbs).

Lock pry and nail puller: Pries open doors, windows, and padlocks; pulls up steel nails. Length 24.3 cm (9.6”); weight ~0.90 kg (~2 lbs).

Metal cutter: Tears open iron sheeting (cars, airplanes, etc.); suitable for various accident rescue operations. Length 29.0 cm (11.4”); weight ~1.0 kg (~2.2 lbs).

Ratchet pry-head: Opens and pries doors. Pry head surface is treated w/ anti-stripping patterns, which can convert the angle of disassembly; ratchet has self-locking function. Length 31.9 cm; weight ~1.90 kg (4.2 lbs).

Cross pry: Drills holes in hard objects; wedges into gaps in doors, windows, cars, etc.; pointed chisel head pierces through 1 mm-thick steel plates. Length 15.4 cm; weight ~0.90 kg.

Wide axe: capable of cutting and splitting doors and windows, shattering fragile materials such as glass. Length 20.4 cm (15.4”); weight ~1.65 kg (3.6 lbs).

Glass breaker: capable of piercing and breaking 8 mm-thick tempered glass for rapid rescue. Length 21.4 cm (8.4”); weight ~0.80 kg (~1¾ lbs).

Connecting rod: Length 14.3 cm (5.6”), weight ~0.30 kg (0.66 lbs).

Toolbox: Waterproof and shockproof; makes tool storage and transport easy.

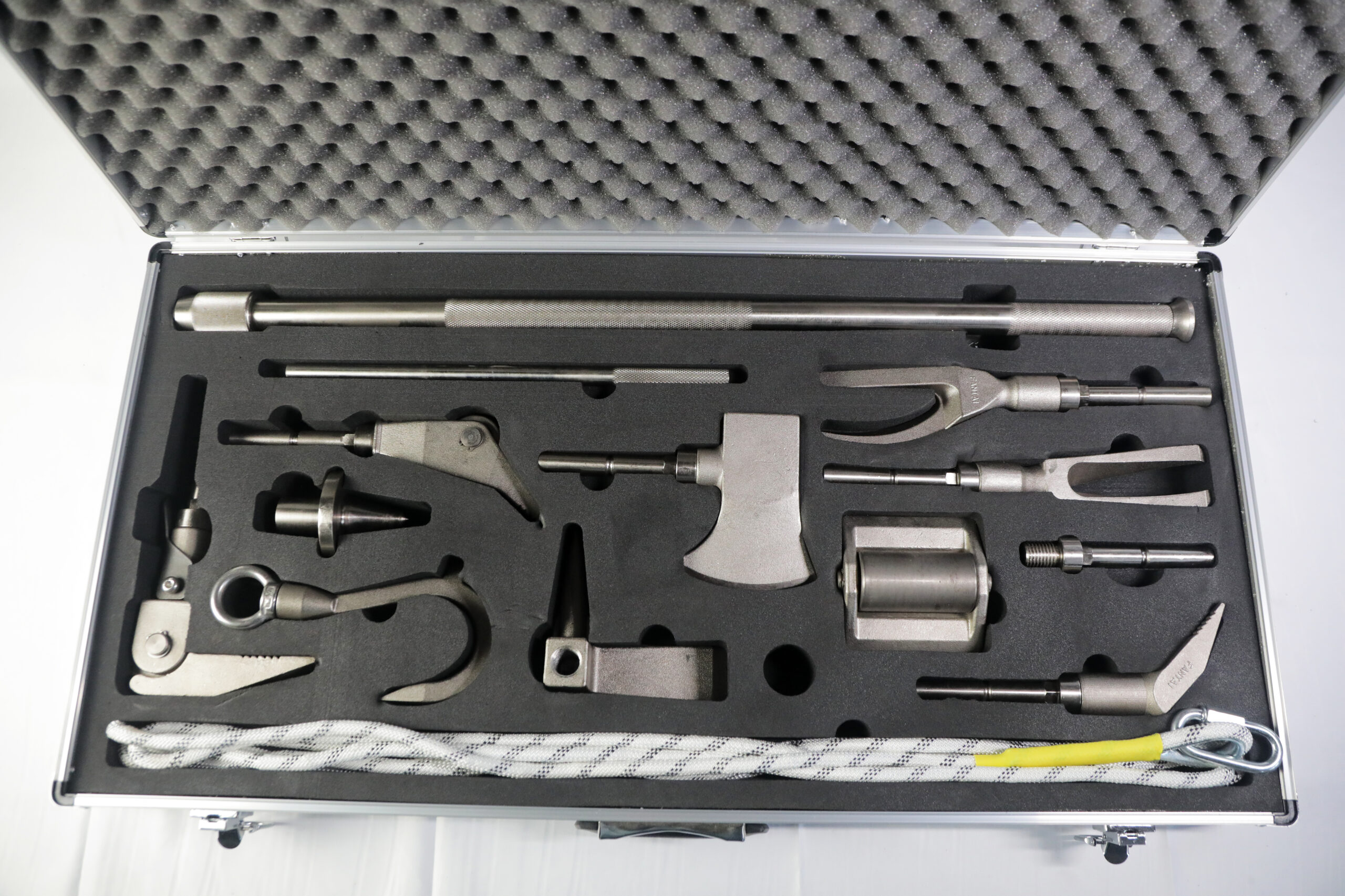

Kit (15 pcs.) includes: axe lever, lock puller, metal cutter, wedge lever, cross lever, wide axe, glass breaker, multifunctional mobile load-bearing lever, multifunctional mobile load-bearing pryer, tow hook, rescue rope, short pry bar, short connecting rod, ratchet pry head, portable case.

Axe lever: Anti-slip-treated grip handle; made of high-strength tool steel. Useable as a lever and handle; can be used in combination w/ other tool heads. Length 78.5 cm (31”); weight ~2.0 kg (4.4 lbs).

Lock pry and nail puller: Pries open doors, windows, and padlocks; pulls up steel nails. Length 24.5 cm (9.6”); weight ~0.90 kg (~2 lbs).

Metal cutter: Tears open ≥ 2mm thick tubes and iron sheets (on cars, airplanes, etc.) Length 29.5 cm (11.6”); weight ~1.0 kg (2.2 lbs).

Wedge-type pry head: Length 22 cm (8.7”), weight ~0.80 kg (~1¾ lbs).

Cross pry head: Drills holes in hard objects; wedges into gaps in doors, windows, cars, etc.; can be used as a pointed chisel to pierce through 1 mm-thick steel plates. Length 15.4 cm (6.1”); weight ~0.90 kg (~2 lbs).

Wide axe: Splits windows and wooden doors, can cut off round steel with a diameter of 6.0 mm. Length 20.4 cm (8”); weight ~1.65 kg (3.6 lbs).

Glass breaker: Capable of piercing and breaking 8 mm-thick tempered glass for rapid rescue. Length 21.4 cm (8.4”), weight ~0.77 kg (1.7 lbs).

Multi-functional mobile load-bearing pry: For prying up, dragging, and moving obstacles; can pry open doors and windows. Length 24.9 cm (9.8”); weight ~1.48 kg (3¼ lbs).

Multi-functional mobile load-bearing body: Can be used for simple towing and transfer of objects in narrow spaces. Thickness 69 mm; weight ~3.20 kg (~7 lbs).

Ratchet pry head: Opens and pries doors. Pry head surface is treated with anti-stripping patterns to convert the angle of disassembly; ratchet has self-locking function. Length 31.9 cm (12.6”); weight ~1.90 kg (4.2 lbs).

Rescue rope: Length 5 m (197”); 10mm thick, w/ a tensile strength of ≥ 6kN. Can also be used in conjunction with the rescue hook, or other towing hook.

Connecting rod: Connects w/ tool heads. Length 14.3 cm (5.6”); weight 0.27 kg (0.6 lbs).

Short pry bar: Suitable for prying in narrow spaces; can also be used in conjunction with mobile load-bearing body. Length 36.6 cm (14.4”), weight ~0.45 kg (~1 lb).

Rescue hook: The pointed hook end can penetrate objects; back of towing hook is designed to prevent detachment from object being towed. Single piece w/out welding. Tail of towing hook has a diameter of 41 mm with a tensile strength of ≥ 10kN. Can be used in conjunction with iron chains. Length 19.4 cm (7.6”); weight 0.43 kg (0.95 lbs).

Portable case: Waterproof and shockproof; convenient for tool storage and transportation. Dimensions: 82.4 × 41.1 × 11 cm.

Description: Operable by a single person; these easy-to-carry tools can be used to dismantle doors, windows, locks, nails, bolts, etc. of buildings and vehicles in relatively simple rescue environments. Multiple functions, such as heavy hitting, stabbing, prying, twisting, splitting, chopping, tearing, etc. Can break doors, pry locks, tear iron sheets, pry and move heavy objects, cut car metal sheets and other composite materials, and is suitable for various emergency rescue sites.

Kit Includes:

Lock and nail remover: Can pry open padlocks, door latches, and nails. Can close leaking valves in emergency situations.

Breaking axe: Can chop through obstacles such as doors, windows, and wooden boards.

Metal cutter: Capable of cutting open gaps into iron sheets on cars, airplanes, etc.

Cross pryer: Duckbill pry can be inserted into the gaps of doors and windows to pry them open. Chickbeak pry is used to drill holes in wooden boards or iron sheets.

Breaking axe, breaking lock, and nail puller: Length 94.0 cm (37”), weight 4.54 kg (10 lbs).

Cross pry & metal cutter: Length 90.0 cm (35.4”); weight 4.63 kg (10.2 lbs).

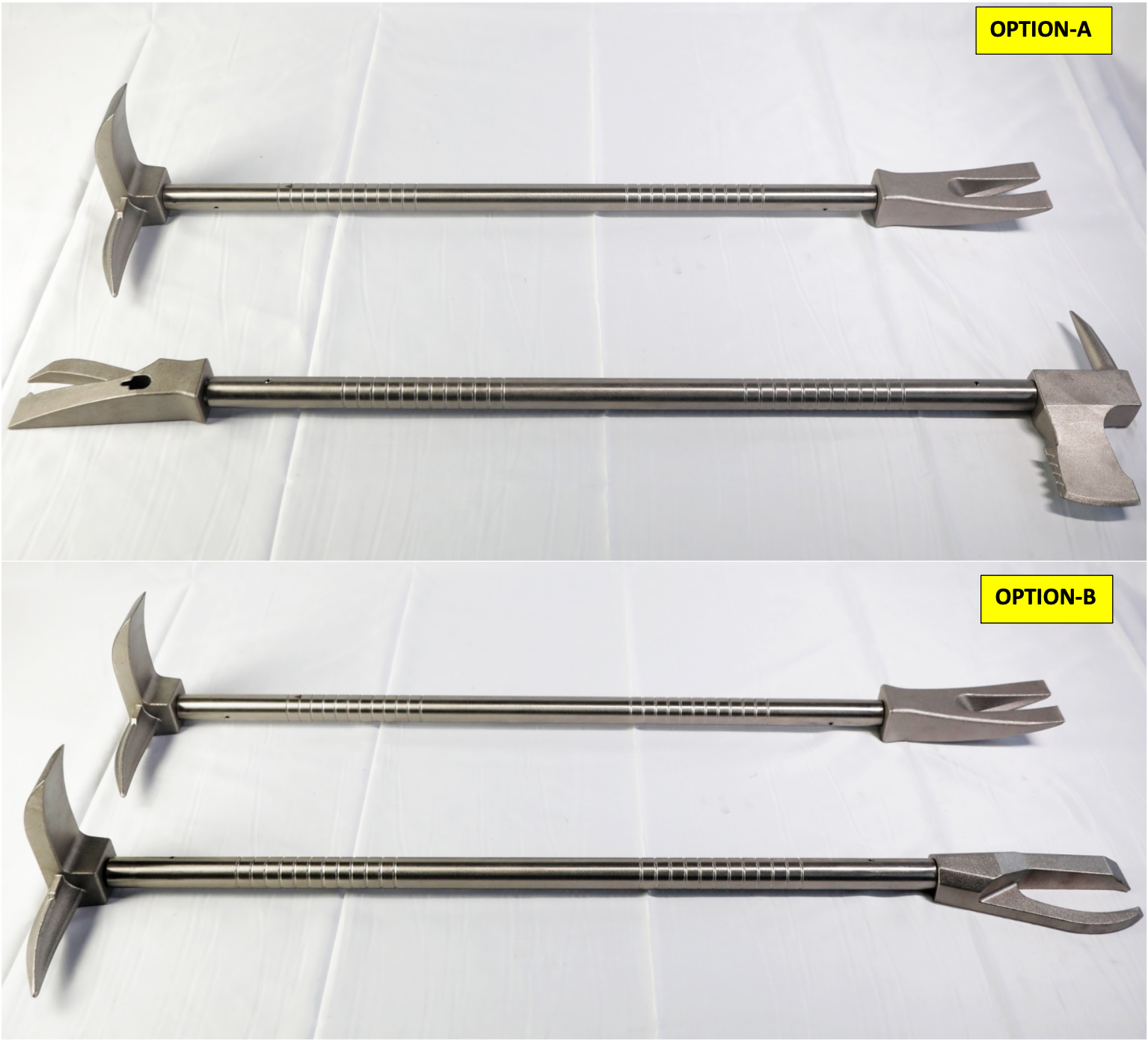

*This toolkit comes in two (2) configurations, Option A and Option B (see product images). Please specify when ordering.*

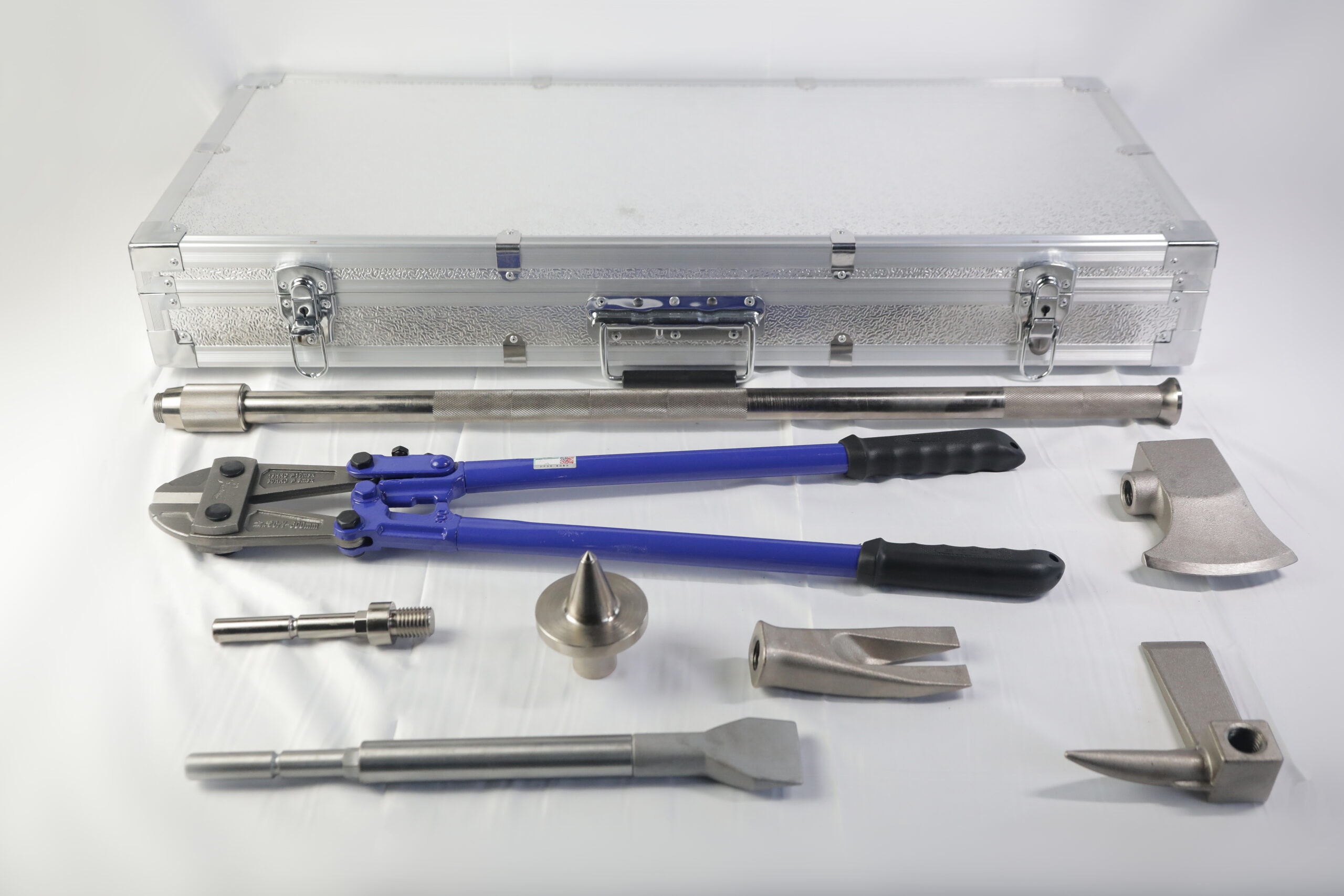

Description: Suitable for cutting and dismantling doors and windows, padlocks, concrete, tempered glass, metal, steel bars, etc.

Functions include pulling, prying, chopping, twisting, stabbing, splitting, tearing, knocking, chiseling, smashing, cutting, etc.

Made with high-strength tool steel, which can quickly and effectively break doors, pry locks, cut steel bars, chisel through bricks and stones, crush concrete walls and floors, and smash glass. Suitable for various rescue scenarios, esp. earthquakes or car accidents.

Kit includes: Axe lever, lock puller, bolt cutter, cross pry head, wide axe, wide chisel, glass crusher, connecting rod, door hammer, aluminum alloy portable case.

Individual Tool Descriptions:
Axe lever: Anti-slip-treated grip handle for safety and convenience; made of high-strength tool steel. Can be used as a lever and handle in combination with other tool heads. Length 78.5 cm (31”); weight ~2.0 kg (~4.4 lbs).

Lock pry and nail puller: pries open doors, windows, and padlocks; pulls up steel nails. Length 13.0 cm (5.1”), weight ~0.60 kg (1.3 lbs).

Cross pry head: used in combination w/ connecting rod, can chisel through 1 mm-thick steel plates, shatter glass, and pry doors & windows. Length 12.5 cm (4.9”); weight ~0.64 kg (1.4 lbs).

Wide axe: Splits wooden doors and windows; can cut off round steel with a diameter of 6.0 mm. Length 12.9 cm (5.1”), weight ~1.5 kg (3.3 lbs).

Bolt-cutters: Head is forged from high-quality alloy steel; can cut chain locks, Q235-equivalent round steel w/ diameter of 6 mm, cables, etc. Length 60 cm (23.6”); weight ~2.40 kg (~5.3 lbs).

Glass breaker: made of alloy materials, connected to the pry axe rod; can puncture and crush 8 mm-thick tempered glass. Length 9.3 cm (3.7”); weight ~0.46 kg (1.0 lbs).

Wide chisel: used in conjunction with pry axe lever to impact and chisel open hard objects such as bricks and walls, and to break down windows and wooden doors. Length 35 cm (13.8 lbs); weight ~1.06 kg (~2.3 lbs).

Battering Ram: Metal body, movable front handle, capable of breaking locks or hinges, quickly destroying fixed targets. Length: 65.5 cm (25¾”); weight ~20.5 kg (45.2 lbs).

Connecting rod: Length 14.5 cm (5.7”); weight ~0.30 kg (0.66 lbs).

Toolbox: Waterproof and shockproof; makes tool storage and transport easy.

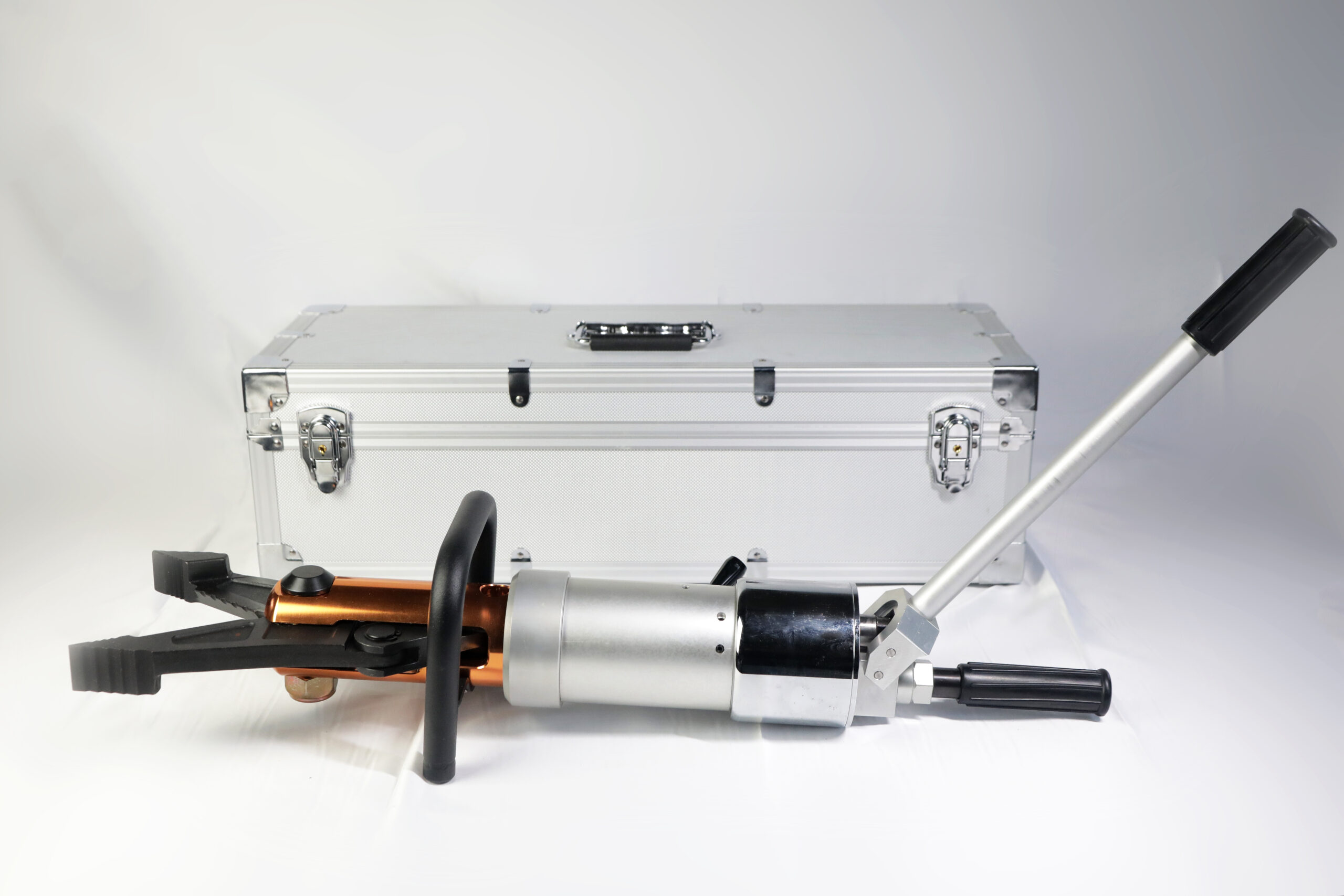

Description:
Manual hydraulic pump eliminates the need for an external power source; high and low pressure automatically switch.

The shear blade and manual pump can rotate 360° between each other, adapting to different situations and orientations.

The cutting tool is made of tool steel; can be used to shear, expand, and clamp. Lightweight and easy to carry.

Specifications:
Operating pressure: 700 bar
Shear force: 18t round steel diameter (Q235): within Φ 20
Expansion force: 5.5t
Expansion distance: 16.0 cm (6.3”).
Weight: ~12 kg (26.5 lbs).
Size: 74.0 × 23.0 × 17.5 cm (29” × 9” × 6.9”).

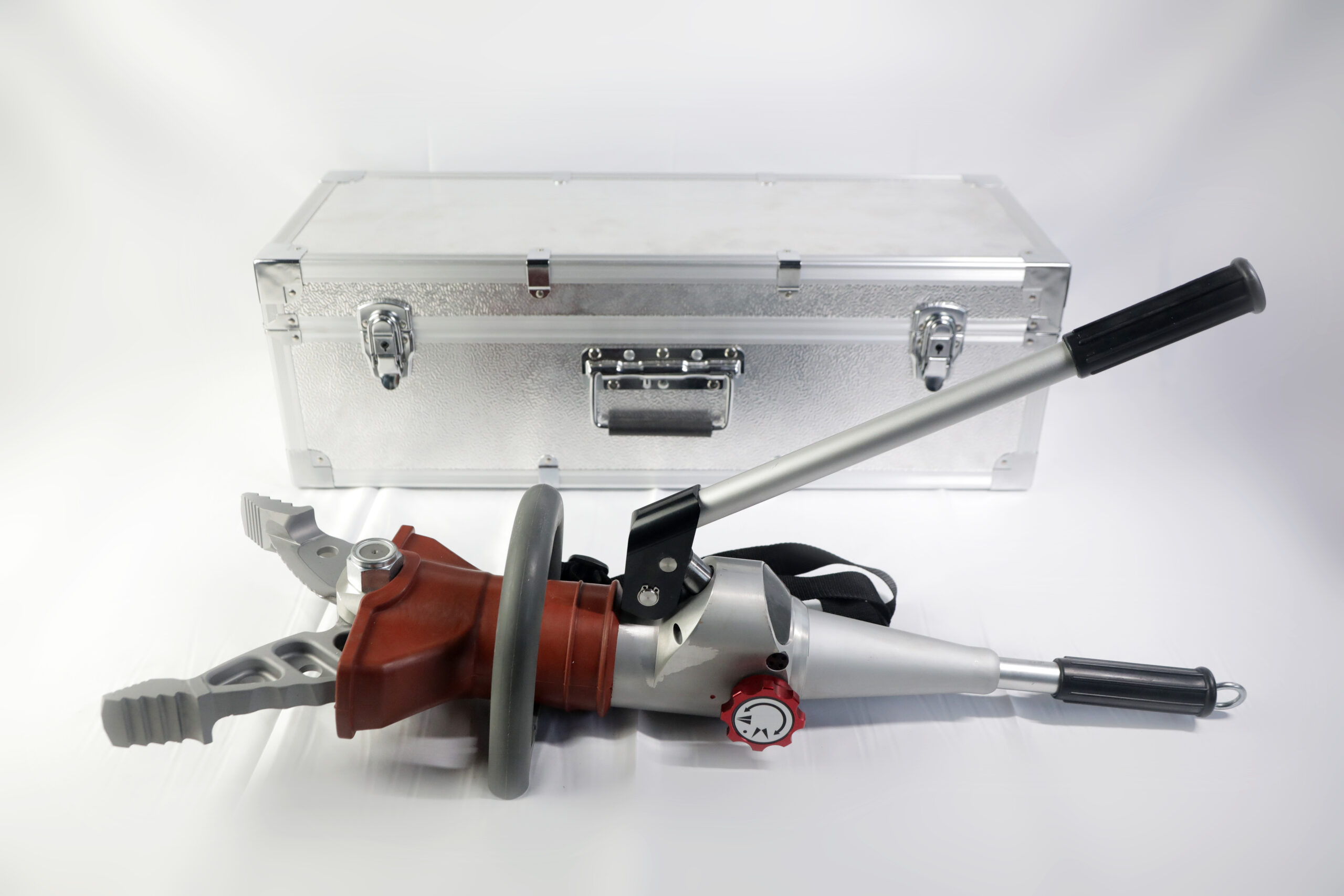

Description:
The manual portable & hydraulic universal multifunctional pliers integrate the manual pump, control valve, oil tank, and tool head into one, enabling it to have multiple functions such as cutting, separation, and clamping. The anti-splash technology on the cutting edge provides additional safety protection for the operator. The elliptical, ergonomic anti-slip handle, combined with a 360º rotating working head, facilitates operation at any spatial angle. Its cutting tools have introduced German made tool steel material technology, which not only ensures shear strength but also toughness. The body material is made of aviation lightweight, high-strength aluminum alloy material, and the surface is treated with ceramics, making the tools suitable for underwater use.

Specifications:
The maximum cutting force at the root is 300KN, and at the center it is 160KN.
The maximum expansion force is 34KN and the maximum expansion distance is 270MM.
Maximum cutting capacity (Q235 material) Round steel diameter: Φ 25, steel plate 10MM.
