EOD / Bomb Disposal

EDI-USA’s bomb suppression blanket is used to suppress and help minimize blasts & fragmentation impacts from dangerous explosive threats, including improvised explosive devices (IEDs) and other bomb threats.

This blanket is designed to resist NIJ level III-A threats, and is also tested to STANAG 2920 fragmentation (MIL STD 662F threats), and will resist up to 70g of TNT. EDI-USA’s bomb blanket is lightweight and portable, and works well to help quell explosions or to help isolate a package in a public area until a bomb squad can arrive.

EDI-USA’s bomb suppression blanket is available with two (2) different internal compositions of tightly compressed ballistic materials for the end user to choose: ballistic aramid or ballistic polyethelene (uni-directional). All bomb blankets include a water-resistant cover (black) and are equipped with four (4) heavy-duty webbing carry straps to be carried and deployed fast & efficiently.

Safety Circle: EDI-USA manufactures our Bomb Blanket to include one (1) deep safety circle (rectangular), which is adjustable by Velcro fastening. It can be easily placed over the suspicious package, and the bomb blanket is placed over the safety ring in order to help suppress the blast. We also manufacture a second model of Bomb Blanket which includes two (2) deep safety circles, which can also be adjusted by Velcro and can be easily placed over the suspicious package.

The blanket has a relief vent hole in the middle of it (13″ in diameter) which is covered by the blanket’s black fabric. The relief vent helps to propel the energy of an explosion upwards through the top of the blanket if an explosion is detonated.

Available in small or large. Please inquire for specific dimensions. Custom size and dimensions, as well as custom colors, are available upon request. Please contact us for any technical questions, or custom quotes for customized dimensions for our Bomb Blankets.

Have more questions about our Bomb Suppression Blanket? We’ve got you covered! Please contact us and we are happy to help!

EDI-USA’s ballistic blanket is designed to help prevent a variety of ballistic threats during tactical situations.

Tested to level III-A (ambient), the ballistic blanket can be deployed quickly and mounted on windows, doors, or walls, and can also be used as an emergency ballistic shield for individuals to take cover under during an attack. The ballistic blanket’s internal ballistic material has also been tested for STANAG 2920 (V50) to help prevent additional injury during fragmentation threats.

The ballistic blanket features a heavy duty Codura fabric outer shell, with nylon carry handles. It can be rolled up easily for transport and can be clipped closed when not in use.

Standard Size: 48” x 24”
Jumbo Size: 48” x 72”

Custom sizes & colors are available for production.

Have more questions about our ballistic blanket? We’ve got you covered! Please contact us and we are happy to help!

For high-risk EOD and bomb operations, law enforcement professionals and EOD / bomb disposal operators can rely on EDI-USA’s Bomb Suit (EOD Suit) to provide a high level of protection during bomb removal operations.

The EDI-USA bomb suit includes a durable ballistic mask, ballistic helmet, ballistic collar (front & back), shoulder protection, body-front smock, body-back smock, enhanced blast plate, arm protection, leg protection (including back of thigh and calf), groin protector and enhanced spine protector.

The helmet is equipped with a “smart battery” power supply system, along with an exhaust system and sound amplifier. It also includes a loud noise protection device to help prevent user hearing loss.

To help prevent user over-heating during long operations in the heat, the bomb suit includes a lightweight skin cooling suit (to wear underneath the suit, shown in photos as the black under-suit) with integrated control system, cooling unit (ice box), and charger, with a connection system for water (H2O) inlet / outlet. Communication hardware is also included with the suit, and is compatible with most standard communication accessories and systems, so that the user can communicate while operating in the suit.

Tested to STANAG 2920 (V50) blast standards ranging from 492 m/s up to 2022m/s (blast plates), this suit will help to reduce operator injury and death for a range of bomb and explosive threats.

Detailed testing data:

Ballistic Mask: 1.1g fragment, tested at 744 m/s (V50).
Ballistic Helmet: 1.1g fragment, tested at 780 m/s (V50).
Ballistic Smock Insert (front): 1.1g fragment, tested at 645 m/s (V50).
Ballistic Smock Insert & Blast Plate (front): 1.1g fragment, tested at 2022 m/s (V50).
Ballistic Arm Protector: 1.1g fragment, tested at 531 m/s (V50).
Ballistic Shin Protector: 1.1g fragment, tested at 539 m/s (V50).

Additional ballistic testing information available upon request.

The EDI-USA Bomb Disposal Suit (EOD suit) is used by law enforcement, as well as an array of other users such as shipping companies, transportation centers, warehouse / distribution centers, shopping / commercial spaces, and many others. We suggest keeping a suit in your storeroom for future use, because having the suit on hand can make a huge difference when you need it most.

Have more questions about our Bomb Disposal EOD Suit? We’ve got you covered! Please contact us and we are happy to help!

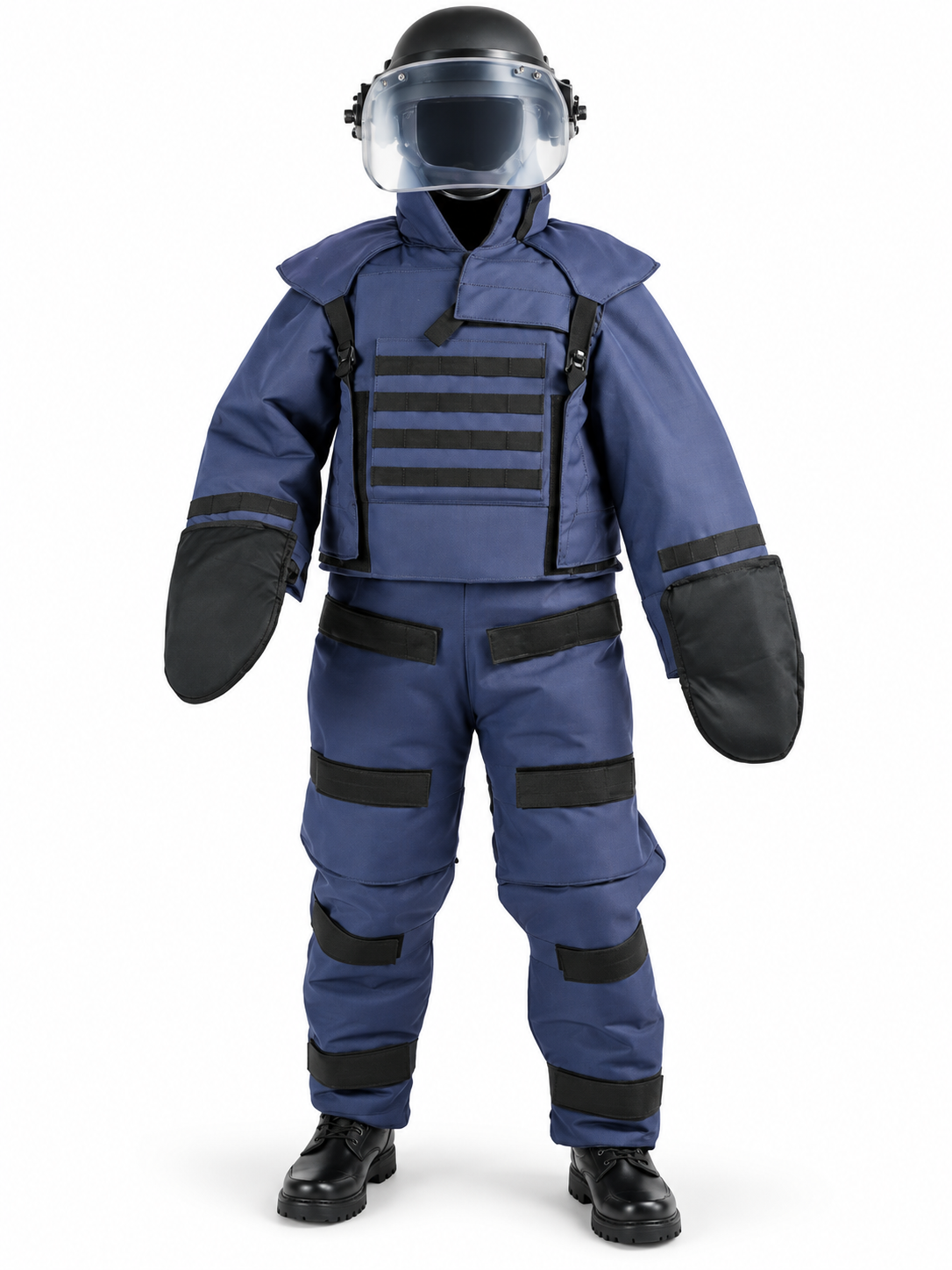

EDI’s De-Mining & Bomb Search Suit is specially designed for de-mining and IED-locating operations. Though offering a lower level of protection than our Bomb Disposal (EOD) Suit, the Bomb Search Suit is much lighter-weight and allows a virtually unrestricted range of motion.

The jacket and trousers are made with four (4) layers of 410g/m2 woven aramid fiber and an additional ten (10) layers of 200g/m2 woven aramid. The helmet is an aramid fiber composite laminate to help prevent harm to the user from projectiles and explosions.

The De-Mining & Bomb Search Suit also has a front pocket for inserting an optional ceramic blast plate for enhanced protection.

An apron-style suit option is also available, as are accessories and partial parts if the end user does not need the full suit.

EDI’s EOD manipulator is designed to move and manipulate suspicions packages, bombs, or other potentially threatening explosive devices. It can be used for all manner of dangerous explosives in public security, firefighting, and EOD operations. Its telescoping design enables the user to operate at a stand-off distance of 9 to 15.4 ft (2.75 to 4.7 m) away.

The EOD manipulator includes an electronically controlled mechanical claw that has a 360º rotation range, 7.8” (20-cm) maximum opening, and can lift objects up to 44 lbs (20 kg) in weight. The battery box acts as a counterweight to the claw end, and the pole is made of high-strength, lightweight carbon fiber to easily adjust & move.

The camera includes an HD lens, 1080P resolution, automatic backlight compensation, and a frame rate of 25–30 fps.

The battery can run for up to 5 hours on a single charge.

EDI-USA’s Handheld Trace Explosive Detector has an extremely fine detection limit and can detect the widest range of explosive substances (up to 30 types). Extremely sensitive, it can detect TNT down to 0.05 ng and is useful in environments where explosive testing is required.

The rechargeable battery has an operating life of over 8 hours, and the device starts up in under ten (10) seconds for rapid testing in high-risk situations where every second counts.

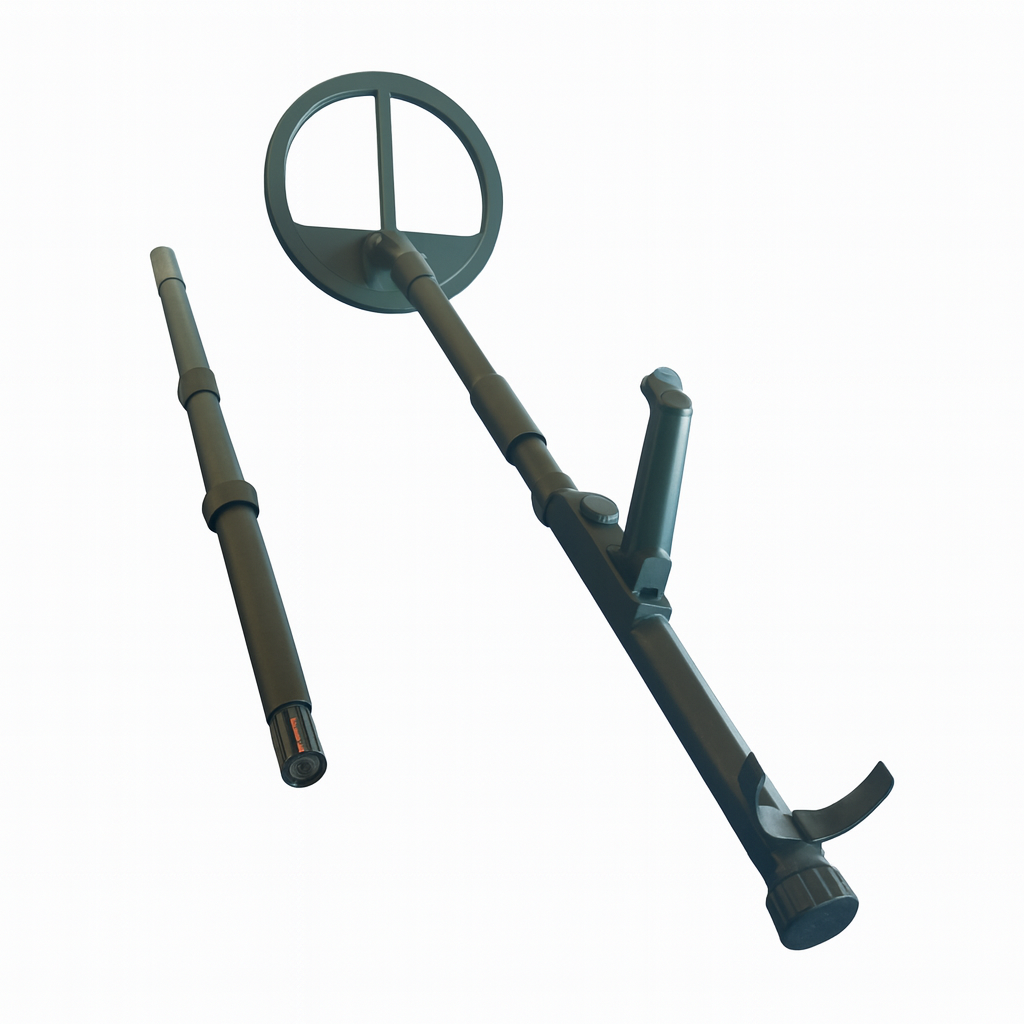

EDI’s Underground mine detector is an effective, reliable solution for mine detection and clearance operations. With automatic self-test and calibration, this mine detector can be used with ease and confidence.

Features:

• • Five (5) LED detection indicator lights
  • Battery (LEE LR20 Manganese Alkaline Dry-cell, 10–18 hr life per charge)
  • ABS packing case
  • Maximum detection range: 0.05 g stainless steel at 75 mm from coil head
  • Two (2) interchangeable detector heads: halo-shape and probe-shape

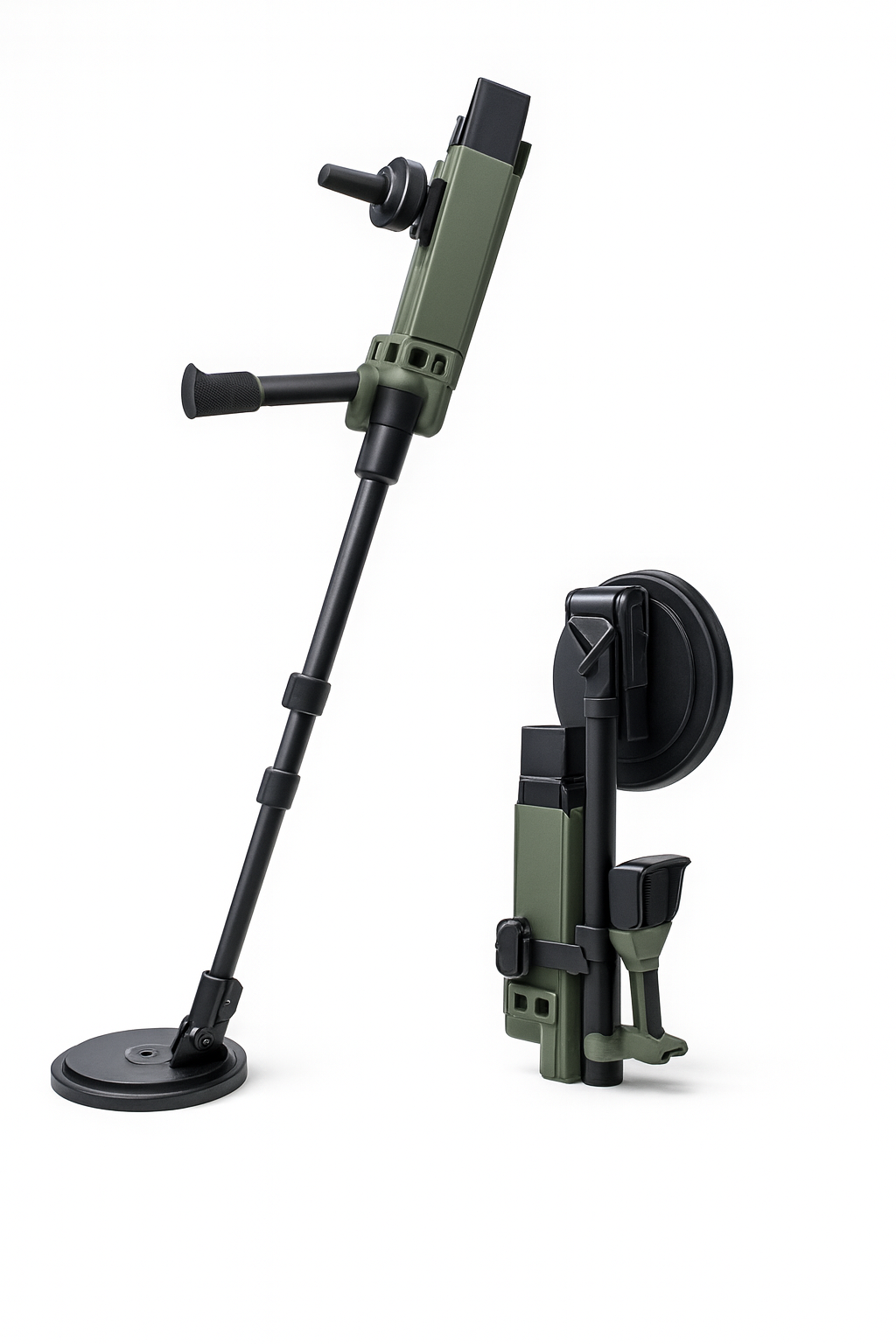

EDI’s composite mine detector combines electromagnetic induction and ground-penetrating radar technology, to detect various landmines or unexploded ordnance buried underground during wartime and postwar mine detection operations, accurately alerting the user to the presence of dangerous metal weapons. It can also be used for international peacekeeping and counterterrorism, as well as security inspections, to seek and identify explosives, firearms, knives, etc. buried underground, in water, and in buildings.

Technical Specifications

–        Detection distance: ≥18 cm (for Type 72 anti-infantry mines)

–        Soil-type adaptability: clay, sand, red clay, etc.

–        Battery life: ≥ 4 hrs

–        Alarm modes: sound, visual, & vibration

–        Three (3) sensitivity levels (low, medium, high)

–        Working temperature range: –40ºC to +50ºC

–        Water resistance: Medium rainfall and water depth of 1 m

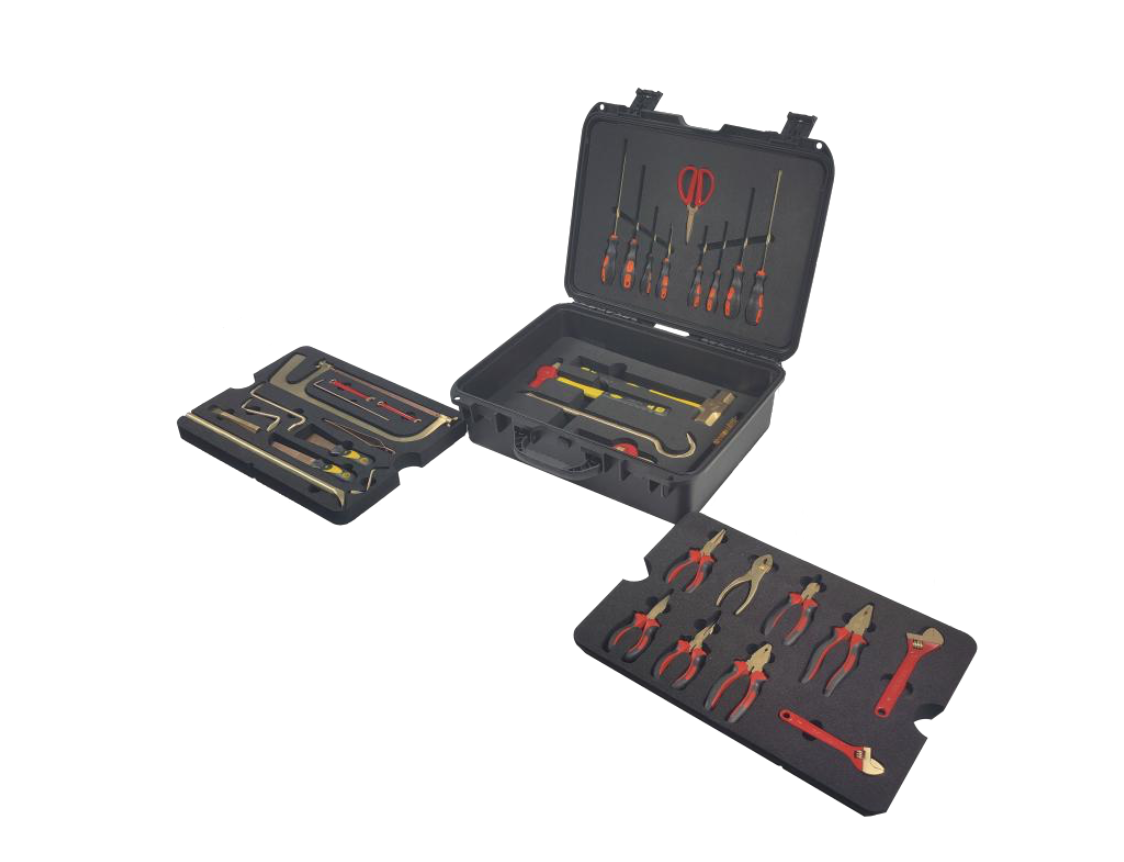

EDI’s 37-Piece Non-Magnetic Tool Kit is designed for bomb disposal operations. All tools are manufactured from non-ferromagnetic and non-sparking beryllium copper alloy.

The tools all pack into a rugged  20″ × 17″ × 7.9″ (51 × 43 × 20 cm) carrying case with non-magnetic fittings. The case is split into foam trays with individual cutouts for secure tool storage, allowing the user to easily tell if any tool is missing.

Kit includes: Sledgehammer, ball-peen hammer, pipe wrench (450 mm), adjustable wrenches (150 & 200 mm), combination wrenches (8 & 10 mm), lineman pliers (150 & 200 mm), snipe-nose pliers, adjustable combination pliers, round-nose & flat-nose pliers, diagonal cutting pliers, slotted screwdrivers (75, 100, 150, & 200 mm), Phillips-head screwdrivers (75, 100, 150, & 200 mm), slotted offset screwdrivers (6×72 mm, 8×125 mm, & 16×160 mm), flat-back wire brush, cutting shears, cutting knife & putty knife, neat-tip tweezers, marking tool, pry bar & wrecking bar, six-pt chisel, and hacksaw.

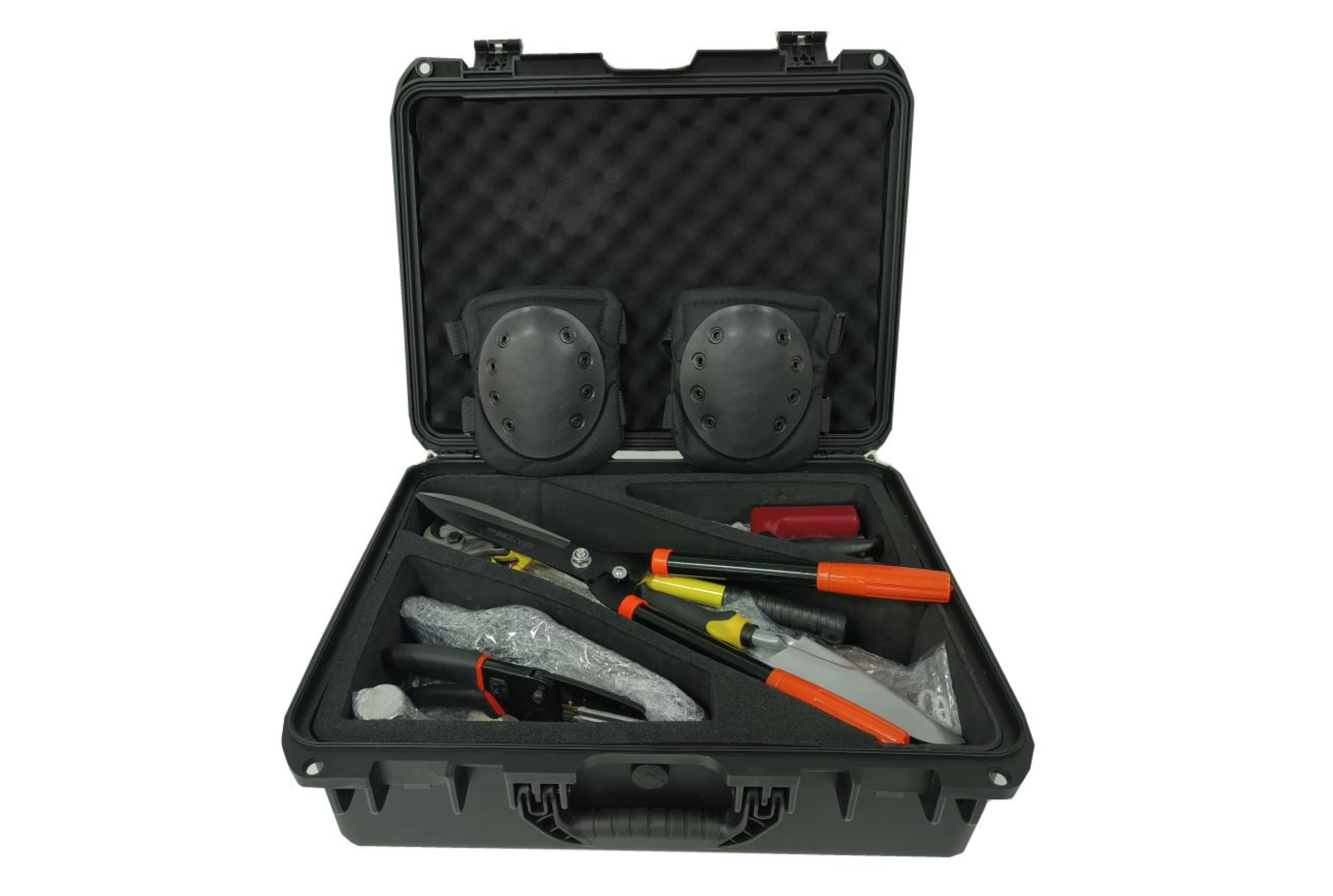

EDI’s 18-piece Mine Clearance Toolkit is designed for demining operations. It is mainly used to clean the surface of the mine-clearance operation area, and to mark hazard areas in the mine field.

The full kit weights 13 kg total.

Toolkit includes:
– Handheld pruning shears (SK5 steel)
– Handheld multifunction shears
– Grass trimmers (high-carbon steel)
– Anvil loppers (45 cm L, 1.5 kg)
– Handsaw
– Handheld metal file (1.4 cm W × 20 cm L)
– Hammer (high-carbon steel, 28 cm long, hammerhead 10.5 cm across, 1.22kg)
– Two (2) dusting brushes (2” wide and 4” wide, solid wood handles)
– Two (2) spades (one stainless steel, one carbon steel)
– Insulating gloves (rubber)
– Twenty (20) mine marking signs (6 cm W × 9 cm H, red and yellow)
– One pair of kneepads
– Magnet w/ handle
– Tape measure, self-locking (5 m maximum length, 19 mm wide)
– Non-magnetic probe, fixed-length (beryllium-bronze probe, plastic handle)
– Non-magnetic probe, telescoping (beryllium-bronze probe, aluminum handle)

EDI’s Advanced Hook and Line Toolkit is our comprehensive solution for remote movement and handling of EOs, IEDs, and bombs.

Features:

• Five (5) plain-tip stainless steel hooks (one ½”, two 1”, and two 2”)
• Two (2) stainless-steel double hooks
• One (1) gap hook and one (1) spring-gate closure hook
• One (1) strap cutter
• Five (5) anchor pads with self-adhesive strips
• Two (2) nut wall anchors and two (2) suction anchors
• Five (5) wood-screw eye hooks
• Two (2) pitons
• One (1) cantilever jaw clamp and one (1) lightweight spring clamp
• Two (2) self-opening and two (2) standard snatch block pulleys w/ openers, marine grade
• One (1) search mirror
• Two (2) forceps
• One (1) center line branch clamp
• One (1) needle-nose clamp
• One (1) standard and one (1) large-mouth vise jaw grips
• Two (2) rubber door wedges
• Two (2) self-lock, two (2) non-self-lock, and two (2) combined-lock carabiners
• One (1) bar clamp and one (1) ratchet clamp
• One (1) extension rod anchor w/ four (4) connecting rods
• One (1) telescoping pole
• Two (2) short and two (2) long endless-loop slings
• One (1) short and one (1) long webbing sling
• One (1) short and one (1) long wire-rope sling
• One (1) short and one (1) long rope sling, low-stretch high-grade kevlar
• Two (2) short and two (2) long shock cords (bungee-style)

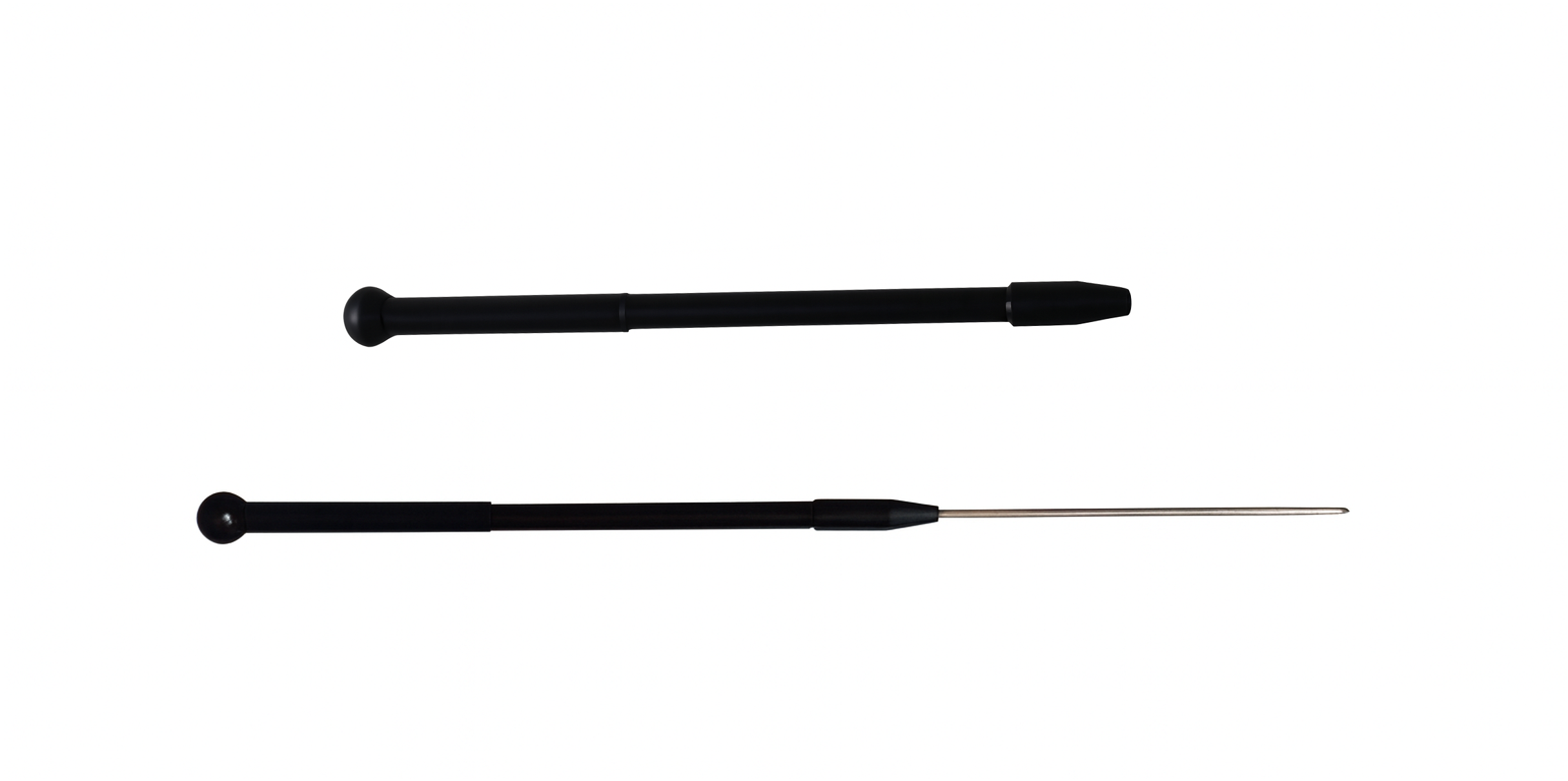

EDI’s non-magnetic prodder is made from non-ferromagnetic and non-sparking copper-beryllium alloy, encased in a non-magnetic insulating handle. This composition is especially suitable for detecting underground mines or other suspected concealed explosives, as it will not generate a spark in collision with metal during minefield breaching or other mine clearance operations.

The one-piece, telescoping/foldable design makes this mine-probe easy to stow or store; it can even be carried in a pocket or pouch.

Specifications:

• Total length: 55 cm (metal probe 18 cm long)
• Weight: 0.3 kg
• Probe diameter: 6 mm

The remote IED wire cutter is spring-loaded, remote wire-triggered, highly reliable,
non-explosive cable cutter. Safely and silently cut control lines, bomb fuses, or pull control cables.

Features:
– Manual spring-loaded cutting mechanism with pull-cable trigger system
– 14-mm cutting blade (capable of cutting up to 7mm multi-strand copper-core cable)
Dimensions: 4 cm W × 25.5 cm L
