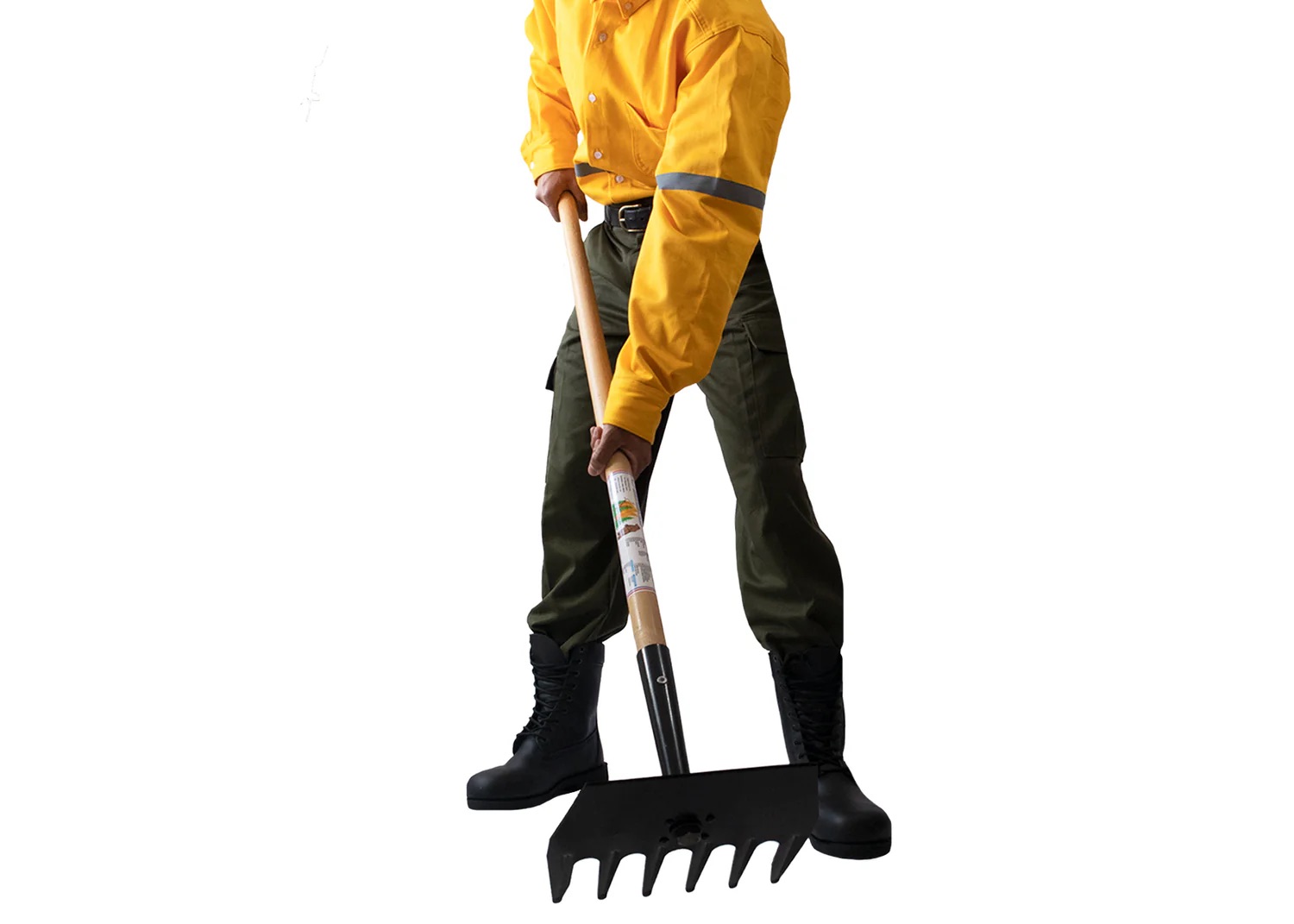

FH McLeod Hoe Rake

Heavy duty 2-in-1 Combination Tool, for clearing large areas and/or making fire lines. Suitable for use in almost any terrain.

Complies with US Forest Service Specification 5100-353 “MCLEOD TOOL”

• Specifications:
  • Total tool length: 51 in (129 ± 1.0 cm)
  • Tine length: 3.5 in (9.05 + 0.5 cm)
  • Tine spacing: 1.9 in (4.8 cm) between
  • Tine head dimensions: 10.9 in (27.62 cm) L, 9.0 in (22.86 cm) W, 0.12 in (3.05 mm) thick
  • Welded conical bushing dimensions: 8.6 in (21.9 cm L); widest diameter 1.5 in (3.8 cm); narrowest diameter 0.9 in (2.2 cm)
  • Central axis width: 0.8 in (2.0 cm)
  • Weight: 5.5 lbs (2.4 ± 0.1 kg)
  • Hardness: 38–48 degrees (Rockwell C scale)

• Materials:
  • Tine head: Single piece of high-strength high-carbon steel (AISI/SAE 1095)
  • Head finish: Entire plate protected w/ oxidation-resistant black paint.
