Hand-Controlled EOD Manipulator

EDI’s EOD manipulator is designed to move and manipulate suspicions packages, bombs, or other potentially threatening explosive devices. It can be used for all manner of dangerous explosives in public security, firefighting, and EOD operations. Its telescoping design enables the user to operate at a stand-off distance of 9 to 15.4 ft (2.75 to 4.7 m) away.

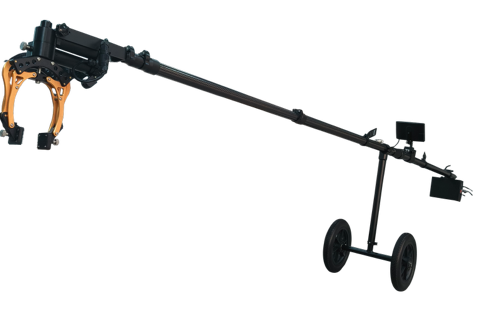

The EOD manipulator includes an electronically controlled mechanical claw that has a 360º rotation range, 7.8” (20-cm) maximum opening, and can lift objects up to 44 lbs (20 kg) in weight. The battery box acts as a counterweight to the claw end, and the pole is made of high-strength, lightweight carbon fiber to easily adjust & move.

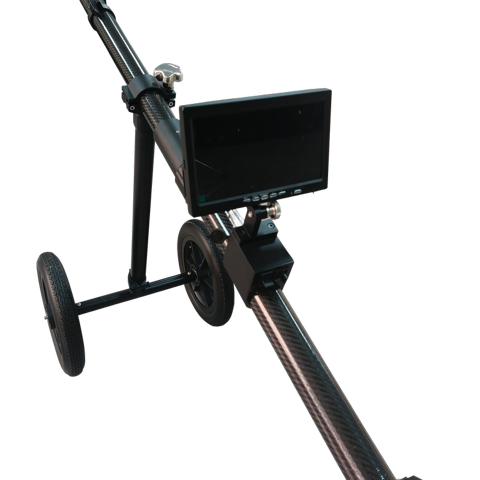

The camera includes an HD lens, 1080P resolution, automatic backlight compensation, and a frame rate of 25–30 fps.

The battery can run for up to 5 hours on a single charge.
